As your workspace grows to dozens or hundreds of projects, you need tools to explore it, debug unexpected behavior, and verify your configuration. Nx provides several commands and visualizations for this.

The project graph

The best starting point for understanding your workspace is nx graph. It opens an interactive visualization with tabs for projects, tasks, and project details:

nx graph

Project graph

The project graph shows every project and the dependencies between them. You can:

Search for specific projects
Filter to show only affected projects or specific groups
Click edges between projects to see which files create the dependency (import statements, package.json references)

Why does this dependency exist?

When you see an unexpected dependency in the graph, click the edge between the two projects. The sidebar shows which files contributed to the dependency:

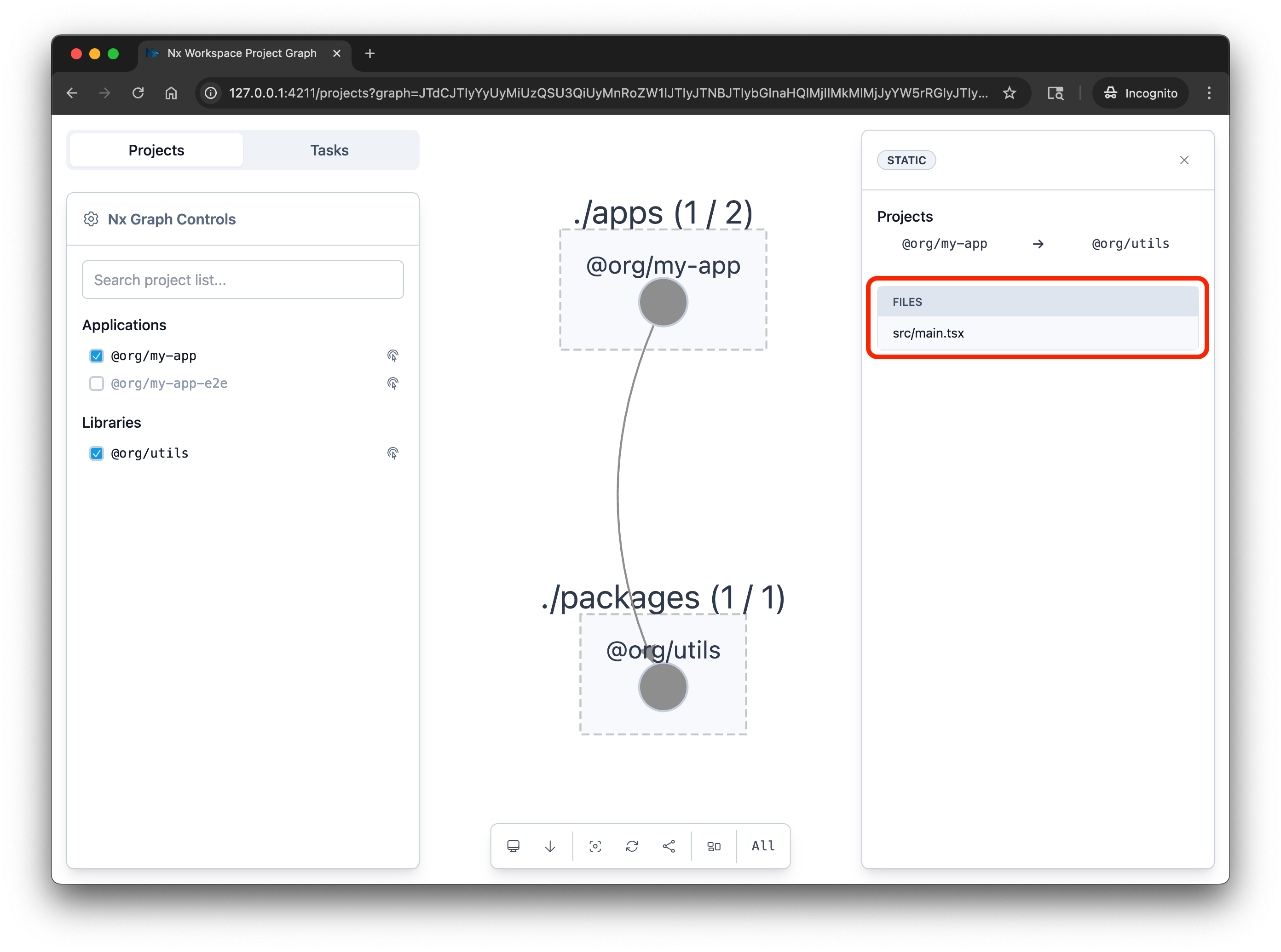

Project graph showing @my-workspace/my-app depending on @my-workspace/utils, with the edge selected and the sidebar listing the specific files that create the dependency

For scripting, write the graph to a JSON file:

nx graph --file=/tmp/graph.json

The task graph

Switch to the Tasks tab in the graph to visualize the task execution plan. Select a task (like build) to see which tasks run and in what order:

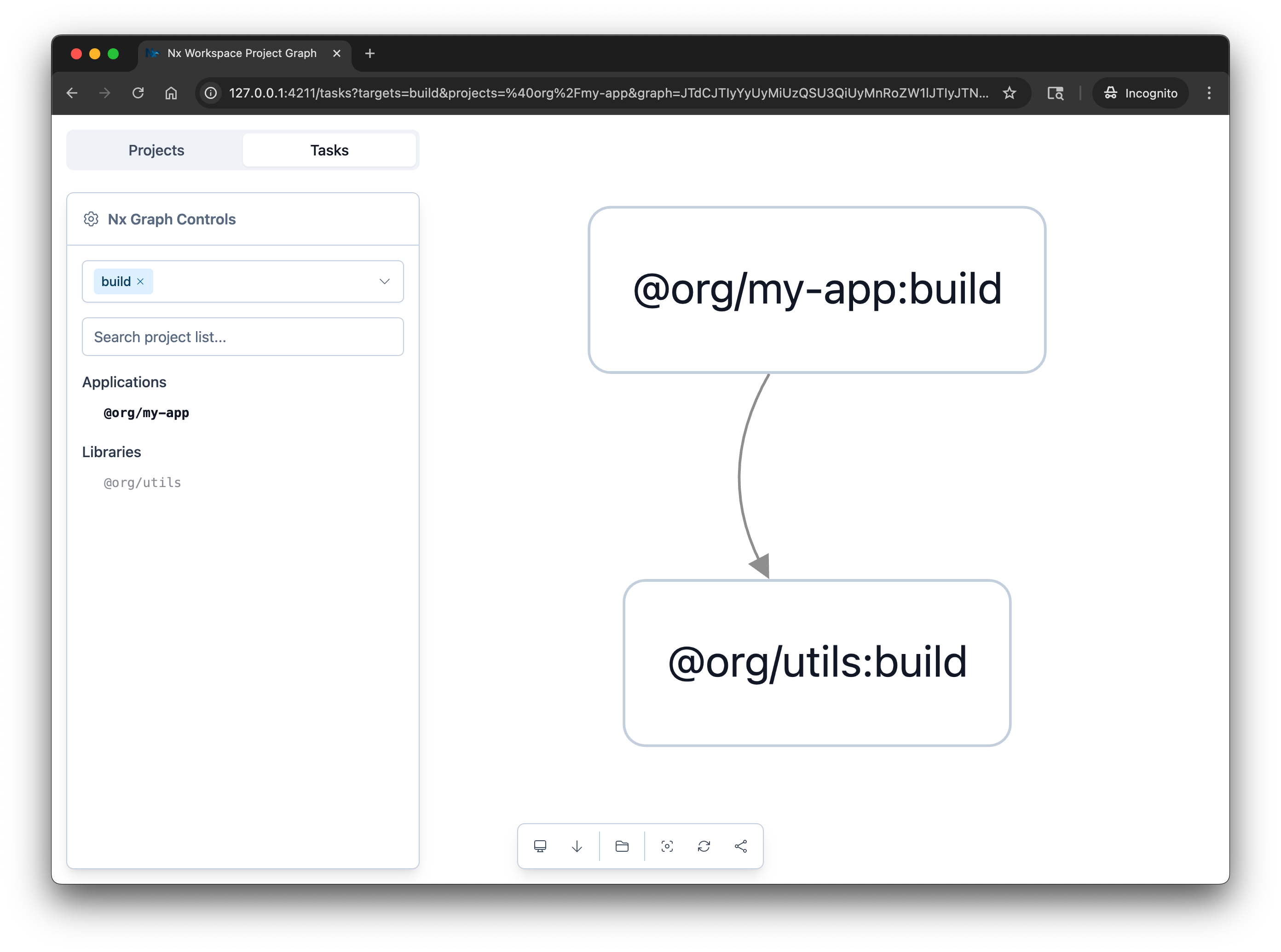

Task graph showing @my-workspace/my-app:build depending on @my-workspace/utils:build, with the arrow indicating utils must build first

You can also open this directly from the CLI:

nx build my-app --graph

This is useful for verifying that your dependsOn configuration is correct. Write the task graph to a file for analysis:

nx build my-app --graph=/tmp/task-graph.json

Inspecting project details

Click any project in the graph to see its details, or use the CLI:

nx show project my-app

Project details

my-app

Root: apps/my-app

Type:application

Targets

build
vite build
Cacheable
test
vitest run
Cacheable

This shows every task, where its configuration comes from, its inputs, outputs, and dependsOn. To drill into a specific task:

nx show target my-app:build

Add --json to either command for machine-readable output.

Listing projects from the CLI

nx show projects

Filter by criteria:

# Only projects that have a build target
nx show projects --with-target build

# Only projects matching a pattern
nx show projects --projects 'packages/*'

Debugging cache behavior

If a task isn't caching as expected, inspect its inputs and outputs:

nx show project my-app

Check the task's inputs. These are the files and values that contribute to the cache hash. If an input changes between runs, the cache is invalidated. Common causes of unexpected cache misses:

An untracked config file is included in inputs
An environment variable changed
A dependency was updated

Nx Console

Nx Console brings all of these capabilities into your editor. In VS Code or WebStorm, you can:

Browse projects and their targets in a tree view
View the project graph inline
Run tasks with a visual interface
Inspect project details without leaving the editor

Install Nx Console for VSCodeThe official VSCode extension for Nx.

Install Nx Console for JetBrainsAvailable for WebStorm, IntelliJ IDEA Ultimate and more!

Learn more

Explore the graph: full graph exploration guide
Mental model: how Nx thinks about projects and tasks
